Product Detail

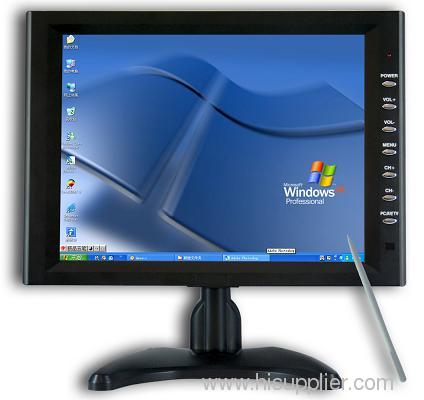

10 inch VGA touch screen monitor
For Car/PC/AV/TV/USB/HDMI optional
CE/FCC/KCC certificate
Top quality manufacture
1 year warranty
10 inch touch screen monitor with VGA input
Features
Features
Four wires resistive touch-screen interface with high Sensitivity (USB port/RS232 optional)
Standard VGA input (15 pin D-SUB) can match with PC, GPS and security systems
Two RCA video input can match with VCD, DVD and camera
Touch-screen for PC display (optional)
Built-in speaker/amplifier and earphone jack
PCoperation system: DOS/Windows 9XME 2KXP 7 Vista NT CE / LINUX / Mac,etc.
Standard VGA input (15 pin D-SUB) can match with PC, GPS and security systems
Two RCA video input can match with VCD, DVD and camera
Touch-screen for PC display (optional)
Built-in speaker/amplifier and earphone jack
PCoperation system: DOS/Windows 9XME 2KXP 7 Vista NT CE / LINUX / Mac,etc.
Can support almost all kinds of resolution
*10″Digital TFT Monitor
*Model: YT102
*Description: 10″ TFT Touch Monitor
*Case/Bezel Colour: Black/silver
*Display Type: 4:3 Ratio10″Active Matrix TFT LCD
*Active DisplayArea: 211.2(W) X 158.4(H) mm
*Native Resolution :800 x 600 @ 60Hz _1024 x 768 @ 75Hz
*Sychronization Range: 30-80 KHz horizontal, 55-75 Hz Vertical
*Pixel Pitch: 0.264(W) X 0.264(H) mm
*Pixel Response Time Rise + Fall (Typically): 12ms
*On Screen Display (OSD): Remote OSD
*Colours: 16.7 million
*Brightness: 350 cd/m2
*Contrast Ratio Typically: 400:1
*ViewingAngle Horizontal (left/right): 170° (85°/85°)
* (From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)
*Backlight Lamp life Hrs to 1/2 brightness: 50,000
*Input Video Format: Analog RGB ,NTSC/PAL/SCAME(AUTO)
*Touchscreen Interface: Serial (RS232) or USB
*Touch Response Time Serial/USB: 10.4ms
*Touch Sensitivity: Fixed
*Operating System: DOS/Windows 9X ME 2K XP 7 Vista NT CE / LINUX / Mac,etc.
*Monitor Dimensions: 267 x 194 x 38(mm)
*Packing Dimensions: 308*300*100mm
*Provider Weight (approximately) Monitor/Shipping: 2.3kg
*Power Supply: External: 85-265VAC, 50-60 Hz
*Power Consumption: <20 W Typ
*Temperature Range: Operating:-10℃-60℃, Storage:-20℃-80℃
*Relative Humidity Non Condensing: Operating:10%-90%, Storage 5%-90%
*Warranty: 1 year
*AgencyApprovals: FCC, CE, RoHS
Available Touchscreen options
resistive touch screen | 4-wire |
5-wire | |
8-wire | |
Glass Type Thickness | Normal Strength 4mm |
Tempered Strength 6mm | |
Surface Treatment | Clear (polished) |
Anti-glare |
Accessories
Serial or USB cable
VGA Video cable
Remote
Power Supply Adaptor
Power Lead (US, EU or UK type)
Software CD
User Manual (English only)
Touch Pen
Bracket
TypicalApplications
Gaming/Casino Systems
Outdoor and indoor Kiosks
Entertainment
Transport and Ticketing
Hospitality
Car PC
Industry equipment
Banking
Customised Solutions
